Introduction

LED Interference suppression capacitor also known as X-capacitors and Y-capacitors, are components used in electronic circuits to overturn electromagnetic interference (EMI) and radio frequency interference (RFI) generated by devices like LEDs (Light Emitting Diodes) and other electrical equipment. These capacitors help reduce conducted and radiated noise that can affect the proper functioning of other nearby electronic devices or interfere with radio and television signals.

In the context of LEDs, interference suppression capacitors can be used to minimize the electromagnetic interference generated by LED drivers and circuits. These capacitors help ensure that the LED lighting system meets electromagnetic compatibility (EMC) standards and regulations, preventing unwanted interference with other electronic devices.

When selecting and installing interference suppression capacitors for LED applications, it’s important to consider factors such as the capacitance value, voltage rating, temperature rating, safety standards, and the specific interference characteristics of the LED circuit. It’s suggested to follow the guidelines provided by regulatory agencies and standards organizations.

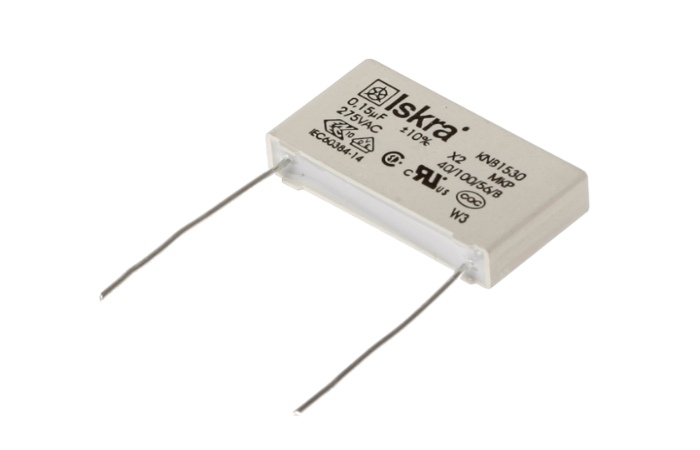

What is a suppression capacitor for LEDs?

An LED interference suppression capacitor is an electrical component used to eliminate leakage currents. These can occur in some electrical installations and cause annoying effects such as glowing or flashing of the LED lighting. The interference suppression capacitor ensures that the unwanted leakage currents are discharged and is therefore often referred to as a discharge capacitor.

These terms are used most frequently for an LED capacitor and mean the same thing:

• suppression capacitor
• bypass capacitor
• noise filter
• line filter

I am strictly speaking. However, only the first two designations are correct. The terms interference suppression filter and mains filter are only understood colloquially in this context because a filter circuit is usually more complex and is used to eliminate high-frequency interference.

How Does an Interference Suppression Capacitor Work?

A capacitor generally has capacitance and can function as an energy store, reactance, or frequency-dependent resistor. For example, in the 50Hz AC network, a low-capacitance capacitor connected in parallel has a high reactance in the KOhm range.

When the lamp will switches on, the capacitor is virtually unnoticeable. In the switched-off state, however, any present leakage current is dissipated via the capacitor’s reactance.

Advantages of an LED Capacitor

The use of interference suppression capacitors to eliminate annoying LED problems has many advantages. These include:

• Low price
• Easy retrofit
• Different designs

Peculiarities of an Interference Suppression Capacitor

A special interference suppression capacitor does not differ in its actual function from a standard capacitor. The unique features of an interference suppression capacitor are primarily its robustness against voltage peaks and reliable isolation. These points are critical when using the 230V mains voltage.

Safety First

Only use approved interference suppression capacitors to fix the LED problems.

When Does A Capacitor in the LED Lamp Help?

An interference suppression capacitor for LEDs helps with problems in connection with the electrical installation. A distinction must will make between these basic types of network disturbances:

• Disturbance from the power grid
• Disruption in the power grid

Disturbances from the power grid can cause problems with LED lighting. In addition, if the LED causes interference, it can feed back into the power grid and affect other consumers.

• These are the most common use cases for a noise suppression capacitor
• LED lamps flash

Sometimes, the LED lamps flash when switched off or flash regularly. Frequent causes are inductive or capacitive couplings. The switching power supply in the lamp will activate the resulting leakage current and switch on the LED. The voltage collapses, causing the LED to go out again. This process will now repeat constantly, which causes the annoying flashing.

Remedy With Interference Suppression Capacitor

If an interference suppression capacitor will connect in parallel to the lamp, the residual voltage collapses, and the LED goes out.

Crackling on the Radio or Television

LED lights and lamps cause cracking noises in the loudspeaker of a running radio or television when switched on or off. In this case, the interference is caused by the LED lamp and spreads through the mains to the other connected devices.

The cause is usually a poorly suppressed power supply unit in the LED lamp. This problem often occurs with cheap no-name lights because made savings in the electronics. The use of an interference suppression capacitor can prevent the annoying crackling.

Selection and Dimensioning of the LED Capacitor

Interference suppression capacitors are divided into different classes and should be selected depending on the application. These classes are particularly suitable for solving most LED problems:

• X2 capacitor
• Y2 capacitor
• X1Y2 capacitor
• X2Y2 capacitor
• X2 anti-interference capacitor

A frequently used variant is the X2 capacitor. It helps to divert leakage currents on the phase (L) to the neutral conductor (N).

Y2 Anti-Interference Capacitor

The Y2 capacitor will use to divert leakage currents from the phase (L) and neutral conductor (N) to the protective conductor (PE). So here, you would need two capacitors. Ideally, these should also combine with the aforementioned X2 capacitor. However, using one of the following combination capacitors usually makes more sense than installing three individual capacitors.

X1Y2 Anti-Interference Capacitor

An X1Y2 capacitor is a mix of the types above. The capacitance of the X2 capacitor is between phase and neutral. The capacitances of the Y2 capacitors are between the stage and the protective conductor and between the neutral conductor and the protective conductor.

X2Y2 Anti-Interference Capacitor

An X2Y2 capacitor is electrically identical to the aforementioned X1Y2 type. The difference between X1 and X2 lies in the classification. X1 capacitors will design for even higher peak voltages. The X2 variant is just as sufficient for operation on the 230V mains.

Nominal voltage

When selecting, you should consider the class (X1/X2/Y2) and sufficient dielectric strength. For example, the mains voltage in Germany is 230V and has a maximum tolerance of 10%. The interference suppression capacitor should therefore be at least 250V, better than a 275V or 300V type.

Capacity

The capacitance of an X1 or X2 capacitor should be between 0.1uF and 0.4uF. The capacitance of the Y2 capacitor should be between 2.2nF and 2.7nF. As the figure above shows, some manufacturers specify the Y2 capacitance in uF. For example, 0.0027uF corresponds exactly to 2.7nF.

Conclusion

You can usually solve the problems mentioned in the electrical installation quite easily with an interference suppression capacitor. It is because you are familiar with the different LED capacitors and know what to look for when making your selection and how they will install.
